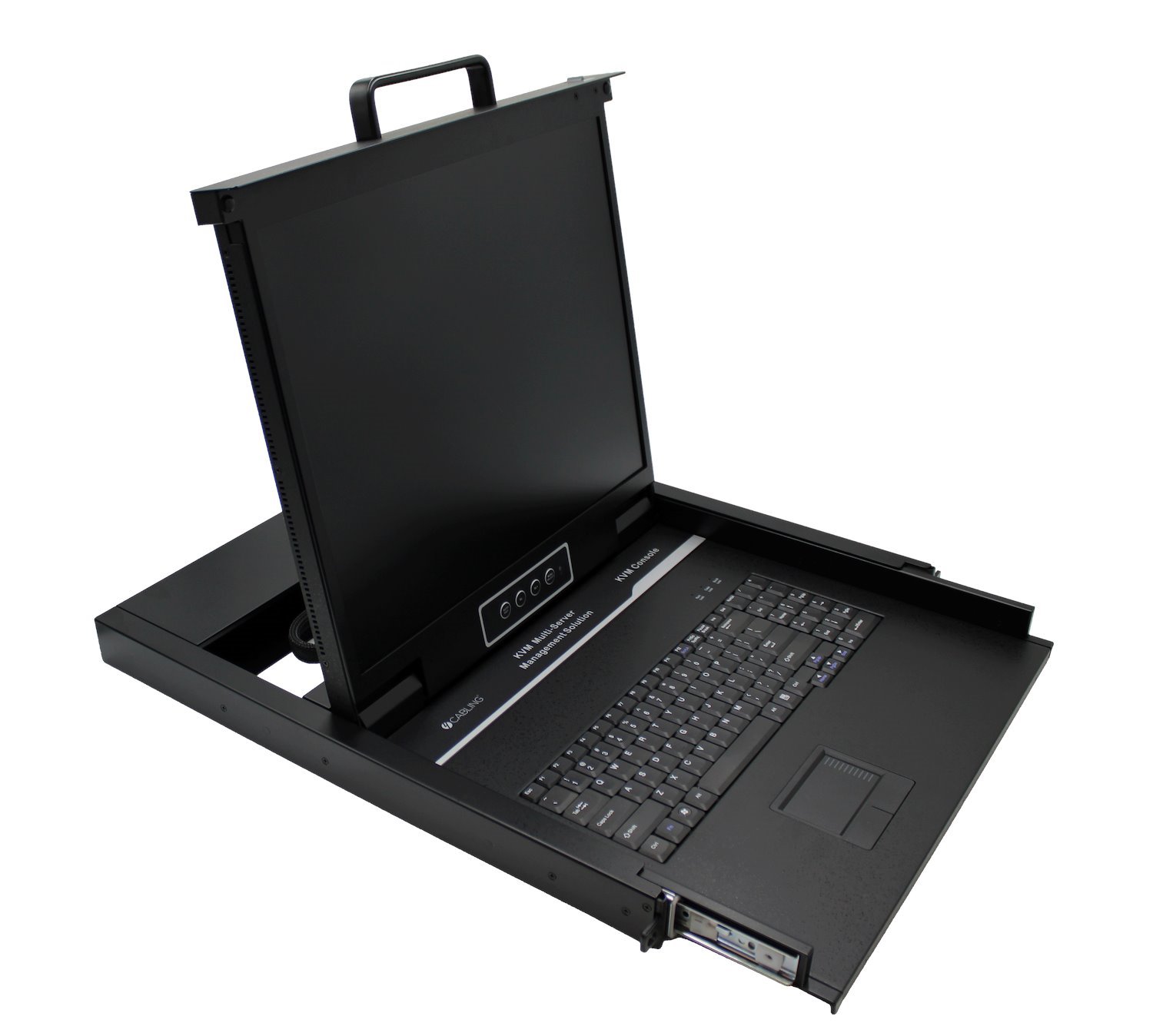

The 4Cabling 1RU Rackmount LCD KVM Console is a professional-grade solution for managing your server environment efficiently. By integrating a high-resolution 19" LED monitor, a full-size ultra-slim keyboard, and a precision touchpad into a single 1U rack space, this console maximises space in high-density server racks. The single-rail design allows for smooth operation, sliding effortlessly into your cabinet to save valuable floor and rack space when not in use.
Designed for modern data centres, this unit features a native HDMI connection, ensuring crisp digital video quality and seamless integration with contemporary servers and PCs. The console is built for durability and ease of use, featuring an automatic-locking guide rail and a front panel lock latch for added security. It provides a complete control station that can be connected directly to a single computer or integrated into a larger KVM switch system to manage multiple servers from one central point.
Installation is straightforward with the included mounting kit and high-quality cabling. The unit supports high resolutions up to 1280x1024@60Hz, providing a clear and reliable interface for critical system management. The ergonomic layout includes an ultra-slim keyboard with a dedicated numeric keypad, offering the comfort of a desktop experience within a compact rackmount form factor.
Whether you are managing a small office server or a large-scale enterprise data centre, this HDMI KVM console offers the reliability and performance required for real-time monitoring and control. Its robust metal construction and AU approved power components ensure long-term stability and compliance for Australian server environments.
FEATURES
- 3 in 1 LED console integrating the monitor, keyboard and mouse
- 1RU space-saving design fit for installing in a standard 19" server rack
- Directly connect computer or KVM switch to control single or multiple computers
- 19" LED TFT monitor with high resolution
- Ultra-slim keyboard with 99 keys including a numeric keypad
- Standard PS/2 touchpad with scroll wheel function
- Front panel lock latch and automatic-locking guide rail for security
- HDMI port for high-quality digital video input
SPECIFICATIONS
- Direct Computer Connections: 1
- Maximum Computer Connections: 1
- Port Emulation: USB for keyboard and mouse
- Video Connector: HDMI
- LCD Monitor: SXGA TFT LED
- View Area: 19"
- Optimum Resolution: 1280x1024@60Hz
- Display Colour: 16.7M
- Brightness: 250cd/m² (Typ)
- Contrast Ratio: 1000:1 (Typ)
- Pixel Pitch: 0.2928mm(H)x0.2928mm(W)
- Keyboard: 99 keys (82 keys main + 17 numeric)
- Input Power: 100V-240Vac, 50-60Hz, <1.5A
- Power Consumption: 17W
- Operating Temperature: 0-50°C
- Store Temperature: -20-60°C
- Humidity: 0-80% RH, non-condensing
- Net Weight: 12kg
- Product Dimension: 448mmx505mmx42.5mm
WARRANTY
1-Year Limited Warranty
